SUNTEST XLS+

SUNTEST XLS+-药品老化测试的理想选择

SUNTEST XLS+氙弧灯老化箱是Atlas专为紧凑型老化测试提供的解决方案。
  • 概述 +


    现代化台式氙弧灯老化箱,适用于3D样品的最佳老化测试仪器,配有各种易用的配件,让SUNTEST满足您的不同需求。



    SUNTEST XLS+氙弧灯老化箱被广泛应用于检测材料和产品因日光、温度和水分而引起的短时间内的特性改变。产品在室外或室内发生的变化,如褪色、黄变或强度损失,可能需要几个月或几年的时间,而在一台SUNTEST老化测试仪器中往往只需要几周就能进行模拟。

    优点:
    • 依据CIE85高级日光辐射模拟
    • 模拟窗玻璃过滤阳光或人造超市灯光
    • 用于测试3D样品的一流试验箱设计
    • 易于使用的触摸屏用户界面,有13种语言可选
    • 方便快速启动操作的预设标准
    • 符合ISO 4892-1标准的黑标温度传感器(BST)
    • 满足不同测试需求的自动辐照度控制

    可选附件:
    • 用于耐候老化测试的SunSpray喷淋装置
    • 方便在极端湿度条件下进行测试的SunFlood浸泡装置

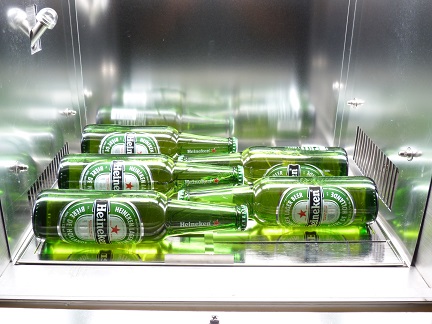

    • 用于低温环境下的测试(如药物、饮料)SunCool冷却装置
  • Features +


    • Benchtop design 90 x 54 x 62 cm
    • 39 x 30 cm (1170 cm2) exposure area
    • 1 air-cooled 1700 W xenon lamp
    • Easy-to-use touch screen user interface with 13 selectable languages
    • Direct setting and control of irradiance at 300-400 nm (incl. 340 nm) or 300-800 nm (incl. Lux)
    • Direct setting and control of Black Standard Temperature (BST), BPT optional
    • Display of test chamber temperature
    • Direct setting of tolerance ranges for each test parameter for optimum test control
    • Display of diagnostic messages
    • 10 free programmable tests possible with up to 12 phases
    • Pre-programmed polymer and coatings standards for Quick-starters
    • Control panel tilts for comfortable ergonomic operation

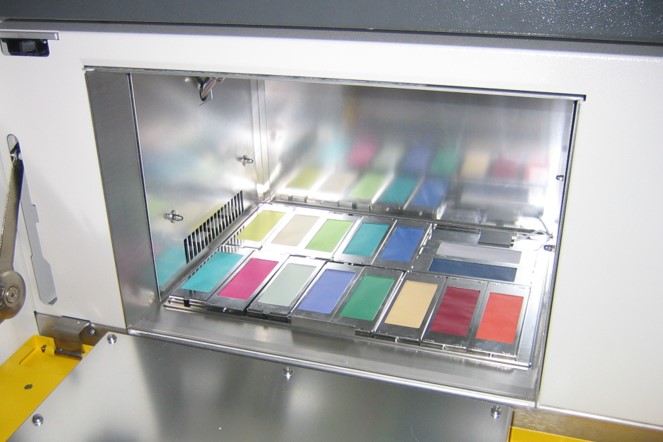

    • Horizontal 1170 cm2 exposure area, for multiple flat or 3-D specimens
    • Premium sunlight simulation according to CIE85 reference sun
    • Lamp cassette with aluminum reflector, lamp connections and filter slot
    • Outer filter non-aging uncoated quartz
    • Irradiance range 30-65 W/m2 (300-400 nm); 0.26-0.62 W/m2 (340 nm) or 250-765 W/m2 (300-800nm); 45-130 klx (Lux)
    • BST range 45-100 °C
    • BST sensor design according to ISO 4892-1
    • Ethernet interface for network connections. See optional XenoTouch Software Add-ons 1, 2, and 3 (“Remote Control“, “E-Mail Service“, “Online Monitoring“)
    • "Switch-off modes: radiant exposure, light exposure time or total operating time
    • Advanced auto-start functions
    • Data output via RS232 or memory card
    • Internal memory chip for storing instrument data
  • Options +


    • Light Monitor 300-400 nm
    • Light Monitor 300-800 nm
    • BST/BPT exchange kit
    • Humidity Sensor for measuring relative humidity during testing

  • Accessories +


    • Daylight filter
    • Window Glass filter
    • Solar ID 65 filter
    • Store Light filter

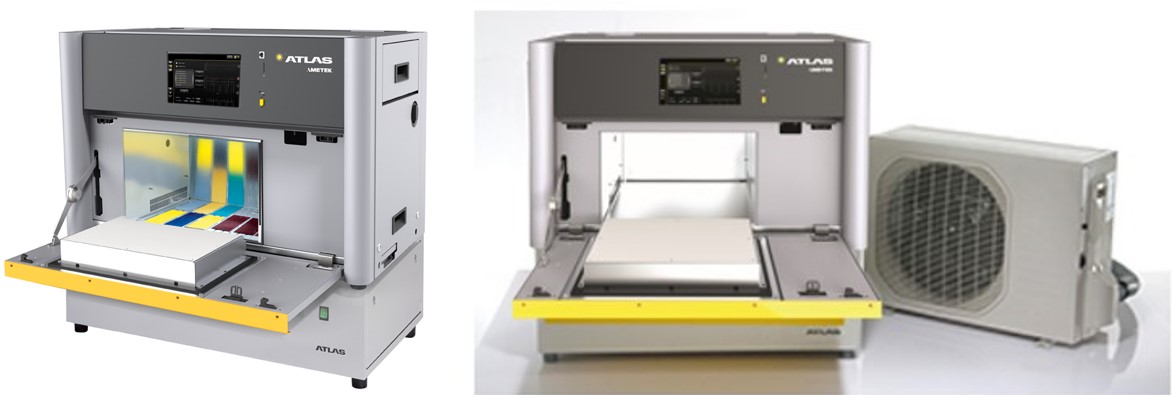

    • SunCool Chiller for testing at low temperatures
    • SunSpray: 40 L specimen spray system for testing the weather resistance of materials, e.g. paints, plastics or building materials
    • SunFlood:40 L temperature controlled immersion system for testing the weather resistance of materials, e.g. paints, plastics or building materials
    • Water-cooled specimen table for exposure of thermo-sensitive samples
    • ICH-D10/20/30 powder sample holders for preparation of 1-3 mm powder samples (Pharmaceuticals)
    • SunCal BB 300-400 BST sensor for calibration of irradiance in W/m² in the wavelength range 300-400 nm and for calibration of BST in °C
    • SunCal WB 300-800 BST sensor for calibration of irradiance in W/m² in the wavelength range 300-800 nm and for calibration of BST in °C
    • SunCal Lux BST - Calibrated Lux-Sensor for calibration (via IBM compatible PC) of illuminance (lx) and radiant exposure (lxh), combined with calibrated BST sensor for calibration of Black Standard Temperature in °C
    • XenoTouch Software Add-ons “Remote Control“, “E-Mail Service“, “Online Monitoring“
  • 下载 +

  • 软件 +

  • 应用 +

  • 标准 +


    列出的标准和规范可能包含几个备选的测试选项,该仪器在任何列出的标准中至少满足一个选项。标准如有变更,不另行通知。 这可能导致测试技术的改变。经常与负责的标准开发组织检查标准的修订状态。如果不确定仪器是否符合要求,请与当地销售代表联系。

    • adidas FT-11
      Suntest Light Fastness
    • ASTM C1442
      Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus
    • ASTM C1501
      Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures
    • ASTM D3424
      Standard Practice for Evaluating the Relative Lightfastness and Weatherability of Printed Matter
    • ASTM D5071
      Standard Practice for Exposure of Photodegradable Plastics in a Xenon Arc Apparatus
    • ASTM D6695
      Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
    • ASTM G151
      Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
      Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • EPA/ASTM E896
      Standard Test Method for Conducting Aqueous Direct Photolysis Tests
    • GB/T 8427
      Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GB/T 16422
      Plastics -- Methods of exposure to laboratory light sources -Part 2: Xenon-arc lamps
    • ICH Q1B
      Q1B Photostability Testing of New Drug Substances and Products
    • ICH Q5C
      Stability testing of Biotechnological / Biological products
    • ISO 4892-1
      Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 4892-2
      Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • ISO 10977
      Photography -- Processed photographic colour films and paper prints -- Methods for measuring image stability
    • ISO 11431
      Building construction -- Jointing products -- Determination of adhesion/cohesion properties of sealants after exposure to heat, water and artificial light through glass
    • ISO 16474-2
      Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 11979-5
      Ophthalmic implants -- Intraocular lenses -- Part 5: Biocompatibility
    • OECD 316
      OECD Guideline for testing of chemicals. Phototransformation of chemicals in water – Direct Photolysis
    • OECD Guideline
      Phototransformation of chemicals on soil
    • UATM M15
      Colorfastness: Light
    • VICH GL5
      Guideline On Stability Testing: Photostability Testing of New Veterinary Drug Substances and Medicinal Products
  • 视频 +

  • 录制网络研讨会 +


    氙弧和荧光/紫外 - 比较和应用 - Atlas网络研讨会 - 英语


    常见老化试验的设置 - Atlas网络研讨会 - 英语



    不同氙灯老化仪器 - 应用和局限性 - Atlas网络研讨会 - 英语


    ICH和相关指南- Atlas SUNTEST®仪器中的药物光稳定性测试 - Atlas网络研讨会 - 英语
