油漆&涂料

  • 概述 +




    油漆和涂料的曝晒是户外和实验室人工老化的单项测试中占比较多的部分。因此,Atlas为您的油漆和涂料的耐久性测试提供了理想的选择。 自从在1915年开发首台实验室光色牢度测试仪,以及在1934年收购了基准的South Florida Test Service暴露站点以来,Atlas一直是油漆和涂料的气候耐久性测试的行业创新者。今天,我们为涂料行业提供广泛的耐久性测试设备和服务。



  • Atlas解决方案 +


    油漆和涂料包括广泛的材料和应用,包括但不限于:
    • 现场和工厂应用建筑装饰和产品
    • 内部和外部汽车漆面
    • 功能性涂料(触觉、光学、卫生、阻燃等)
    • 汽车、航空航天和运输涂料
    • 地板和面板的染色剂和漆面
    • 海洋、沿海和近海涂料
    • 家具、细木和地板装饰
    • 户外家具
    • 液体应用屏障和排水剂
    • 屋面产品,包括冷却屋顶涂料
    • 工业防护涂料
    • 公路、桥梁和交通管制涂料
    • 艺术涂料和材料
    • 混凝土和砌体染色剂和防水材料

    膜成型涂料的产品研发往往首先要筛选大量的树脂和添加剂配方,以实现抗紫外线性能和耐水解性。荧光冷凝方法 (ISO 4892-3 and ASTM G154),比如在UVTest仪器中进行测试,就是专为这一目的而设计的。这项技术将测试样品曝晒在太阳光谱中较低的紫外线部分,在暗阶段交替进行水分冷凝。虽然一般不被视为准确定义的耐候老化测试,但这种技术很受欢迎,而且通常适用于对低波长紫外线和水解降解的涂层树脂薄膜配方进行大规模筛选。然而,它通常无法预测使用寿命或颜色和外观属性,在这方面采用氙灯老化是更为合理的方案。

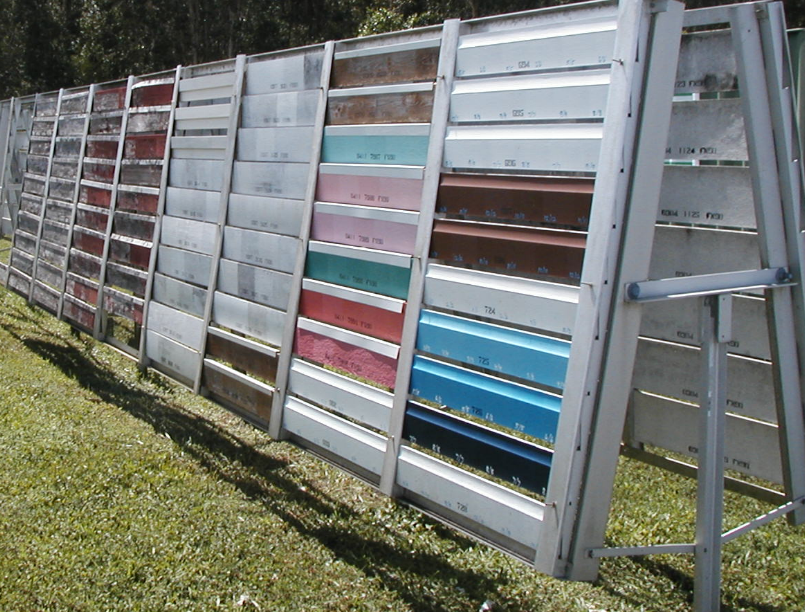

    接下来,对有前景的配方进行的户外暴露测试通常在一个或多个更激进的基准气候中开始,比如南佛罗里达和/或Atlas全球曝晒网络中的其他全球测试场。

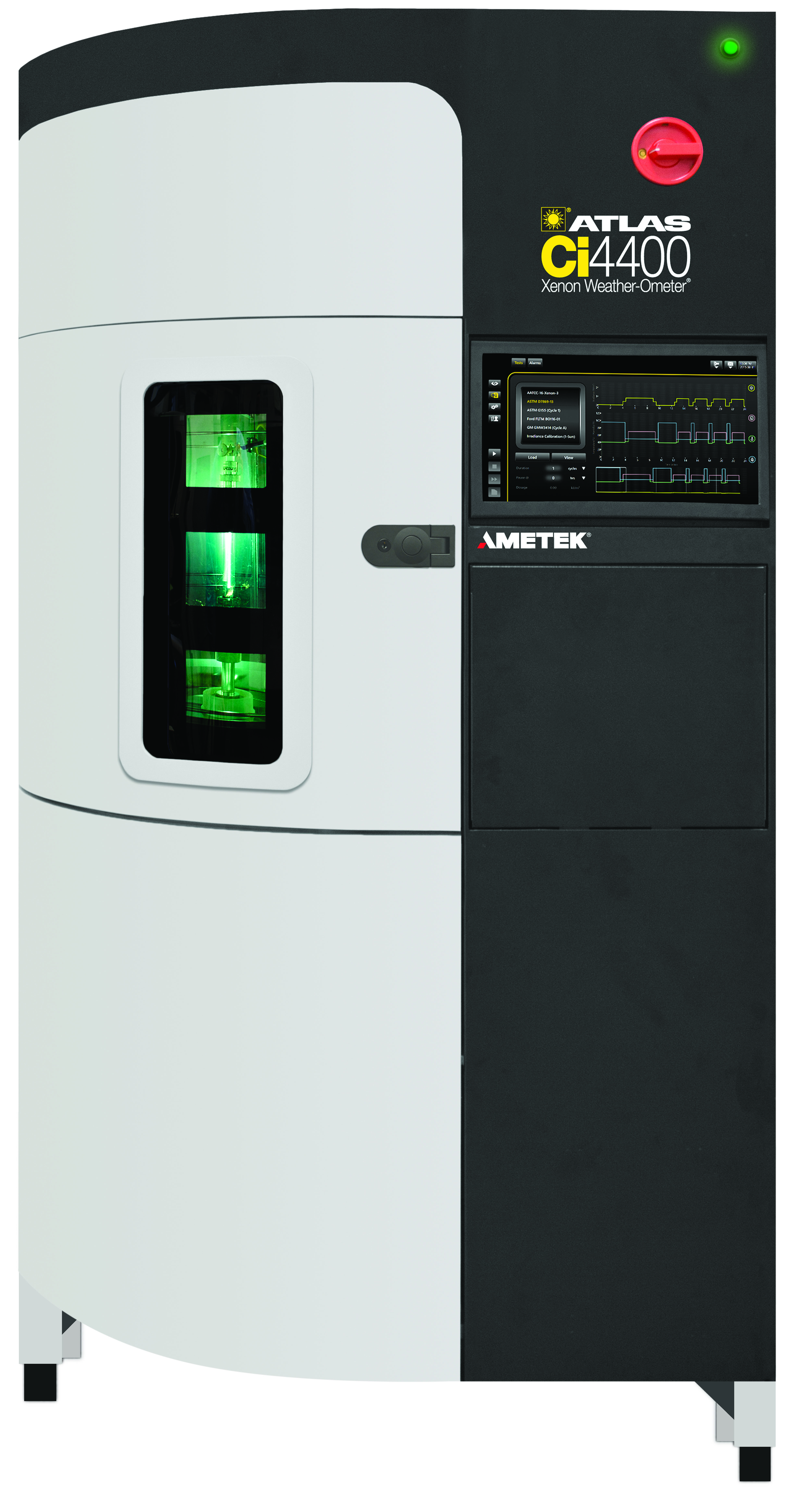

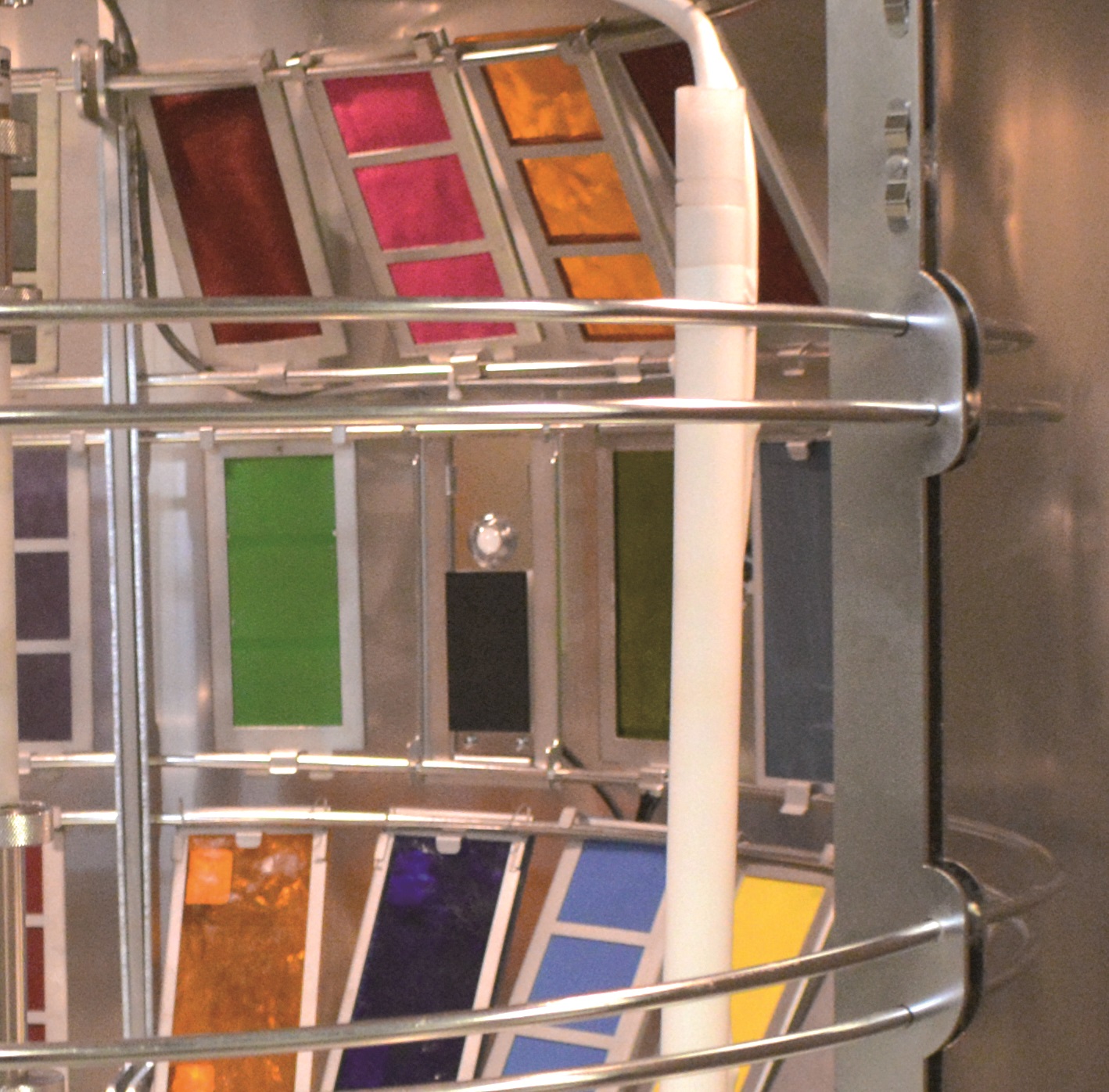

    为了提供产品耐久性的临时数据,包括颜色和外观以及物理性能和性能属性的保留,加速老化也可以通过两种方式进行。首先,利用全光谱氙弧灯老化仪器,如Ci系列Weather-Ometer(Ci3000+Ci4400 Ci5000)、Xenotest (Alpha+Beta+XT440/440+)或SUNTEST (XLS+XXL+)仪器,进行实验室加速人工耐候老化。全谱有助于确保光化学降解机制和测试样品的温度与室外曝晒密切相关,且颜色和外观属性将更具预测性。



    测试一般按照ISO、ASTM或类似标准执行。实验室老化的优势,除了与户外相比缩短了测试时间,还包括测试的可重复性和可再现性,允许在不同的产品之间进行比较,在实验室之间或者在不同的测试时间之间进行比较,不受自然室外天气的固有变化的影响。然而,所有的实验室暴露都应该与在一个或多个气候条件下的实时户外曝晒相关联,并进行验证。

    加速老化试验的第二种方法是户外加速老化。虽然实验室气候老化可为比较提供一个共同的基础,但加速的户外老化更接近自然老化,因为它使用的是自然的日照。太阳能跟踪装置使用多达10面特殊反射镜,将太阳的直接光束反射集中在测试样品上。它们经历光照和温度自然昼夜循环,水喷淋可提供热冲击或夜间润湿,以模拟佛罗里达的亚热带环境。 在20世纪60年代,Atlas DSET Laboratories引入了太阳跟踪和聚光EMMA (Equatorial Mount with Mirrors for Acceleration) ,开创了加速户外老化测试。
    • 标准、可变辐照度和温度控制EMMA/EMMAQUA
    • 低温LT-EMMA即LT-EMMAQUA使用特殊的“冷镜”技术排斥波长超过550纳米的热不稳定材料。
    • 超加速UA-EMMA即UA/EMMAQUA将镜子加倍到20面,以获得更高的辐照度,它使用“冷镜”技术滤除超过550纳米的波长
    • 混合型EMMA/EMMAQUA将标准和冷面镜技术结合在一起,提供增强紫外线的全光谱太阳能。
    • 几台特殊的超加速气候老化系统(UAWS)用于研究,并且可在一年内提供高达63年的迈阿密太阳紫外线。


    最后,在金属基板上进行的涂料腐蚀测试可遵循大部分测试标准,使用Atlas的盐雾(雾)腐蚀试验箱或佛罗里达群岛腐蚀测试场进行。SF系列试验箱执行基本连续喷雾测试,如ASTM B117和G85 1-3, ISO 9227等。BCX系列执行基本循环测试,如ISO 9227、7253和ASTM D5894。CCX系列适用于汽车、航空和运输行业常见的的先进测试周期。Atlas可在芝加哥地区的实验室执行多种常见的腐蚀测试。自然户外曝晒可在Atlas佛罗里达群岛和北海腐蚀测试中心(荷兰)腐蚀测试场进行。
  • 测试标准 +


    There numerous standards and methods governing paint and coating weathering and corrosion testing. The following is only a partial list of some major standards. Please contact Atlas regarding requirements to meet a standard or for testing recommendations.
    • AAMA 2603, 6.1, 6.2, 6.4 & 6.8 Voluntary Specification, Performance Requirements and Test Procedures For Pigmented Organic Coatings on Aluminum Extrusions and Panels
    • AAMA 2604, 7.1, 7.2, 7.4 & 7.9 Voluntary Specification, Performance Requirements and Test Procedures For High Performance Organic Coatings on Aluminum Extrusions and Panels
    • AAMA 2605, 7.1, 7.2, 7.4 & 7.9 Voluntary Specification, Performance Requirements and Test Procedures For Superior Performing Organic Coatings on Aluminum Extrusions and Panels
    • AAMA 613, 7.11 Voluntary Specification, Performance Requirements and Test Procedures For Organic Coatings on Plastic Profiles
    • AAMA 614, 7.9 Voluntary Specification, Performance Requirements and Test Procedures For High Performance Organic Coatings on Plastic Profiles
    • AAMA 615, 7.9 Voluntary Specification, Performance Requirements and Test Procedures For Superior Performance Organic Coatings on Plastic Profiles
    • AAMA 623, 6.11 Voluntary Specification, Performance Requirements and Test Procedures For Organic Coatings on Fiber Reinforced Thermoset Profiles
    • AAMA 624, 7.13 Voluntary Specification, Performance Requirements and Test Procedures For High Performance Organic Coatings on Fiber Reinforced Thermoset Profiles
    • AAMA 625, 7.13 Voluntary Specification, Performance Requirements and Test Procedures For Superior Performance Organic Coatings on Fiber Reinforced Thermoset Profiles
    • AAMA 633, 7.10 Voluntary Specification, Performance Requirements and Test Procedures for Exterior Stain Finishes on Wood, Cellulosic Composites and Fiber Reinforced Thermoset Window and Door Components
    • AAMA 643, 7.3.2 Voluntary Specification, Performance Requirements and Test Procedures for Solar Reflective Finishes
    • ASTM D1006 Conducting Exterior Exposure Tests of Paints on Wood
    • ASTM D1014 Conducting Exterior Exposure Tests of Paints on Steel
    • ASTM D1654 Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments
    • ASTM D1729 Visual Evaluation of Color Difference of Opaque Materials
    • ASTM D2244 Calculation of Color Difference from Instrumentally Measured Color Coordinates
    • ASTM D2616 Evaluation of Visual Color Difference of Opaque Materials
    • ASTM D3274 Evaluating Degree of Surface Disfigurement of Paint Films by Fungal or Algal Growth, or Soil and Dirt Accumulation
    • ASTM D3359 Measuring Adhesion by Tape Test
    • ASTM D4329 Standard Practice for Fluorescent UV Exposure of Plastics
    • ASTM D4587 Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
    • ASTM D523 Specular Gloss
    • ASTM D5722 Performing Accelerated Outdoor Weathering of Factory Coated Embossed Hardboard Using Concentrated Natural Sunlight and a Soak-Freeze-Thaw Procedure
    • ASTM D5894 Standard Practice for Cyclic Salt Fog/UV Exposure of Painted Metal, (Alternating Exposures in a Fog/Dry Cabinet and a UV/Condensation Cabinet)
    • ASTM D6083 Standard Specification for Liquid Applied Acrylic Coating Used in Roofing
    • ASTM D610 Evaluating Degree of Rusting on Painted Steel Surfaces
    • ASTM D660 Evaluating Degree Checking of Exterior Paints
    • ASTM D661 Evaluating Degree Cracking of Exterior Paints
    • ASTM D662 Evaluating Degree Erosion of Exterior Paints
    • ASTM D6695 Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
    • ASTM D6864 Standard Specification for Color and Appearance Retention of Solid Colored Siding Products
    • ASTM D714 Evaluating Degree Blistering of Paints
    • ASTM D772 Evaluating Degree Flaking (Scaling) of Exterior Paints
    • ASTM D7869 Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings
    • ASTM E1331 Reflectance Factor and Color by Spectrophotometry Using Hemispherical Geometry
    • ASTM E1348 Color by Spectrophotometry Using Hemispherical Geometry
    • ASTM E1349 Reflectance Factor by Spectrophotometry Using Bi-directional Geometry
    • ASTM G147 Conditioning and Handling of Nonmetallic Materials for Natural and Artificial Weathering Tests
    • ASTM G151 Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G152 Standard Practice for Operating Open Flame Carbon Arc Light Apparatus for Exposure of Nonmetallic Materials
    • ASTM G153 Standard Practice for Operating Enclosed Carbon Arc Light Apparatus for Exposure of Nonmetallic Materials
    • ASTM G154 Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials
    • ASTM G155 Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • ASTM G201 Conducting Exposures in Outdoor Glass-Covered Exposure Apparatus with Air Circulation
    • ASTM G24 Conducting Exposures to Daylight Filtered Through Glass
    • ASTM G7 Atmospheric Environmental Exposure Testing of Nonmetallic Materials
    • ASTM G85 Standard Practice for Modified Salt Spray (Fog) Testing
    • ASTM G90-10 Standard Practice for Performing Accelerated Outdoor Weathering of Nonmetallic Materials Using Concentrated Natural Sunlight
    • CLP (Chrysler Laboratory Procedures)
    • DIN 53209 Designation of Degree of Blistering of Paint Coatings
    • DIN 67530 Refractometers as a Means
    • DIN EN 13523-10 Coil coated metals - Test methods - Part 10: Resistance to fluorescent UV light and water condensation
    • DIN EN ISO 11664-4 Colorimetry – Part 4: CIE 1976 L*a*b* Colour Space
    • DIN EN ISO 4892-1 Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • EN 13523-14 Chalking (Helmen Method)
    • EN 927-6 Paints and varnishes - Coating materials and coating systems for exterior wood - Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV and water
    • FLTM BO 116-01 Resistance to interior weathering
    • Ford FLTM BI 110-01 Measurement of the Gloss of Paint Panels
    • Ford FLTM BI 160-01 Florida Outdoor Exposure
    • GB/T 10485 Road vehicles- Lighting and light-signaling devices- Environmental endurance
    • GB/T 14522 Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products
    • GB/T 16259 Test method for accelerated weathering of building materials
    • GB/T 1865 Paints and varnishes--Artificial weathering and exposure to artificial radiation - Exposure to filtered xenon- arc radiation
    • GM 9071P, GMW14829 Tape Adhesion Test for Paint Finishes
    • GM 9125P Procedures for Laboratory Accelerated Exposure of Automotive Materials
    • GM 9163P, GMW14873 Outdoor Weathering of Automotive Exterior Materials
    • GM 9327P1, Exterior Weatherability of Integrally Colored Plastics
    • GM 9538P Weathering Exposure Tests for Interior Trims
    • GME 60292 Designation of Colour Fastness and Resistance to Artificial Light
    • GMW 14162 Colorfastness to Artificial Weathering
    • GMW 14650 Performance Requirements for Exterior Plastic Parts
    • GMW 3414 Test Method for Artificial Weathering of Automotive Interior Trim Materials
    • GMW 3417 Natural Weathering Exposure Tests for Interior Trims/Materials
    • Intensity, Quality and Size of Common Types of Defect
    • ISO 11341 Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation
    • ISO 11997-2 Paints and varnishes - Determination of resistance to cyclic corrosion conditions - Part 2: Wet (salt fog)/dry/humidity/UV light
    • ISO 16474-1 Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 16474-2 Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 16474-3 Paints and varnishes - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps
    • ISO 2810 Paint and Varnishes - Notes for Guidance on the Conduct of Natural Weathering Tests
    • ISO 2813 Measurement of Specular Gloss of Non-Metallic Paint Films
    • ISO 4628 Paints and Varnishes-Evaluation of Degradation of Paint Coatings-Degradation of
    • ISO 4892-1 Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 4892-2 Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • ISO 4892-3 Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV-lamps
    • ISO 4892-4 Plastics — Methods of exposure to laboratory light sources — Part 4: Open-flame carbon-arc lamps
    • ISO 7253 Paints and varnishes - Determination of resistance to neutral salt spray (fog)
    • ISO 877-2 Direct Weather and Exposure Behind Window Glass
    • ISO 9227 Corrosion tests in artificial atmospheres - Salt spray tests
    • JASO M346 Light-exposure test method by xenon-arc lamp for automotive interior part
    • JASO M351 Automotive parts - Accelerated weathering testing method by xenon-arc lamp for exterior parts
    • JIS B 7754 Light-exposure and light-and-water-exposure apparatus (xenon arc lamp type)
    • JIS D 0205 Test Method of Weatherability for Automotive Parts
    • LP-463kb-19-01 Outdoor Exposure Trim Materials
    • MIL-STD 810F Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.4: Solar radiation (Sunshine)
    • MIL-STD 810G Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)
    • Peugeot Citroen (PSA) D27 1389 Paint Coatings Rubbers and Plastics - Artificial Ageing by Weather-Ometer
    • Peugeot Citroen (PSA) D47 1431 Materials and Parts in the Passenger Compartment Appearance Behaviour to Artificial Light at High and Mean Temperatures
    • prEN 1062-4 Paints and varnishes - Coating materials and coating systems for exterior masonry - Part 4: Preconditioning of exterior coatings to UV radiation and water in apparatus
    • Renault D27 1911 Rubber and Plastic Paint Coatings - Artificial Ageing by Weather Ometer
    • Renault D47 1431 Materials and Passenger Compartment Parts Behaviour of the Appearance to Artificial Light at High and Medium Temperatures
    • SAE J1767 Instrumental Color Difference Measurement of Colorfastness of Automotive Interior Trim Materials
    • SAE J1885 Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Water Cooled Xenon-Arc Apparatus
    • SAE J1960 Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Water-Cooled Xenon Arc Apparatus
    • SAE J1976 Outdoor Weathering of Exterior Materials
    • SAE J2020 Accelerated Exposure of Automotive Exterior Materials Using a Fluorescent UV and Condensation Apparatus
    • SAE J2412 Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus
    • SAE J2413 Protocol To Verify Performance of New Xenon Arc Test Apparatus
    • SAE J2527 Performance Based Standard for Accelerated Exposure of Automotive Exterior Materials Using A Controlled Irradiance Xenon-Arc Apparatus
    • VDA 621-429 Tests for automotive coatings - Weathering test for colour fastness
    • VDA 621-430 Tests for automotive coatings - Test for resistance to cracking of 2 layer metallic clear coats
    • VDA 75202 Automotive interior materials - Colourfastness and ageing test against light at high temperatures: Xenon arc
    • VW PV 1303 Non-metallic materials - Lightfastness test for interior parts
    • VW PV 3929 Non-Metallic Materials - Weather Ageing in Dry, Hot Climate
    • VW PV 3930 Non-Metallic Materials - Weathering in Moist, Hot Climate
