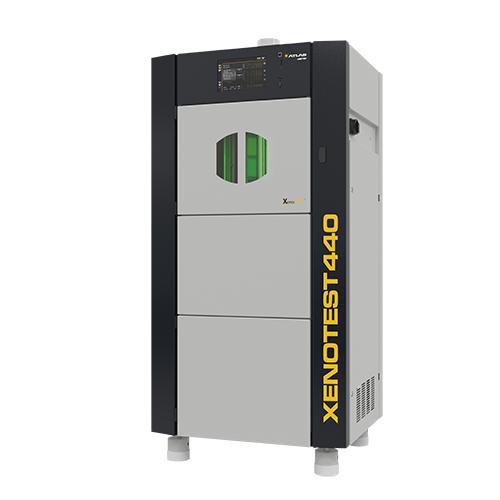

Xenotest 440

Atlas Xenotest 440是一种用途广泛的氙灯耐候试验箱,适用于各种材料。专为快速经济的测试而设计

  • 概述 +


    Xenotest 440是具有很强通用性的氙灯耐候试验箱,可以测试多种材料。Xenotest 440专为经济快捷的测试而设计,采用创新的XenoLogic™双灯运行技术,实现高达120 W/m2的全紫外辐射的高辐照度。此外,XenoLogic还延长了灯管使用寿命。有了这项新技术,两根氙灯的组合可以在40-60 W/m2的标准测试水平下持续工作4000多个小时。

  • Features +


    • 2 x 2200W air-cooled xenon lamps
    • 2310 cm2 exposure area
    • XenoLogicTM lamp operating technology for extended lamp service life
    • Touch screen with color display to monitor and display test parameters
    • Direct Setting and Control of Irradiance (300-400 nm)
    • Direct Setting and Control of Black Standard Temperature (BST)
    • Direct Setting and Control of Chamber Temperature (CHT)
    • Direct Setting and Control of Relative Humidity
    • Display of Diagnostic Messages
    • Storage for 10 user-defined tests
    • Multi-Language Capability: English, German, Italian, French, Spanish, Turkish, Dutch, Polish, Hungarian, Czech, Japanese, Korean, Chinese
    • On-rack XENOSENSIV® RC-300-400 BST for measuring and controlling irradiance (in W/m²) in the wavelength range 300-400 nm and BST (°C) on specimen level
    • Selectable temperature control either by Chamber Temperature (up to 65 °C) or by Dual Control: Chamber Temperature and Black Standard Temperature (up to 115 °C) simultaneously
    • Fan-controlled temperature difference between BST and CHT
    • Ultrasonic humidifier controlling relative humidity in the range 10-75% (Light cycle)
    • Integrated 60 litre water reservoir for humidity control and specimen spray (automatic refill)
    • Specimen spray system
    • Rotating specimen rack with 38 test positions (13.5 cm x 4.5 cm); 33 (10.0 cm x 6.8 cm); 22 (13.5 cm x 5.5 cm); 11 (29.5 cm x 7.0 cm)
    • Pre-programmed lightfastness and weathering standards
    • Outer cylinder made of special UV glass
    • UV-protected test chamber window
    • Internal memory chip for storing instrument data
    • Data output via Memory Card or serial interface RS232
    • Ethernet interface for XenoTouch Add-ons (Remote Control, E-Mail Service, Online Monitoring)

  • Options +


    • XenoCal WST White Standard Thermometer
    • XenoCal BST Black Standard Thermometer
    • XENOSENSIV RC-420 BPT
    • XENOSENSIV RC-340 BPT
    • XenoCal BB 300-400 Irradiance Sensor
    • XenoCal NB 340 Irradiance Sensor
  • Accessories +


    • ISO 105-B02 Application Kit
    • AATCC TM16.3 Application Kit
    • “Weathering” Application Kit
    • Daylight Filter System (filter with UV cut-on at 300 nm to simulate outdoor testing)
    • XENOCHROME 320 (filter with UV cut-on at 320 nm to simulate testing behind window glass)
    • XENOCHROME 320 IR (filter with UV cut-on at 320nm to simulate hot lightfastness testing)
    • Filter System TM16 (filter to meet requirements of AATCC TM16.3)
    • Specialized specimen holder sets with multiple segments
    • XenoCal® WB 300-400
    • XenoTouch Add-ons; Remote Control, E-Mail Service, Online Monitoring
  • 标准 +


    列出的标准和规范可能包含几个备选的测试选项,该仪器在任何列出的标准中至少满足一个选项。标准如有变更,不另行通知。 这可能导致测试技术的改变。经常与负责的标准开发组织检查标准的修订状态。如果不确定仪器是否符合要求,请与当地销售代表联系。

    • AATCC TM16-2004
    • Colorfastness to Light
    • AATCC TM16.3
    • Colorfastness to Light
    • ASTM D2565
    • Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications
    • ASTM G151
    • Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
    • Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • GB/T 8427
    • Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GB/T 8814
    • Unplasticized polyvinyl chloride (PVC-U) profiles for the frames of doors and windows
    • IEC 60068-2-5
    • Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering
    • ISO 105-B02
    • Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
    • Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
    • ISO 105-B06
    • Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • ISO 105-B10
    • Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • ISO 11341
    • Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation
    • ISO 16474-2
    • Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 4892-2
    • Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • VDA 75202
    • Automotive interior materials - Colourfastness and ageing test against light at high temperatures: Xenon arc
  • Downloads +

  • 软件 +

  • 应用 +

  • 视频 +

  • 录制网络研讨会 +


    氙灯技术与应用-Atlas网络研讨会-英语


    氙弧和荧光/紫外 - 比较和应用 - Atlas网络研讨会 - 英语


    常见老化试验的设置 - Atlas网络研讨会 - 英语



    不同氙灯老化仪器 - 应用和局限性 - Atlas网络研讨会 - 英语
