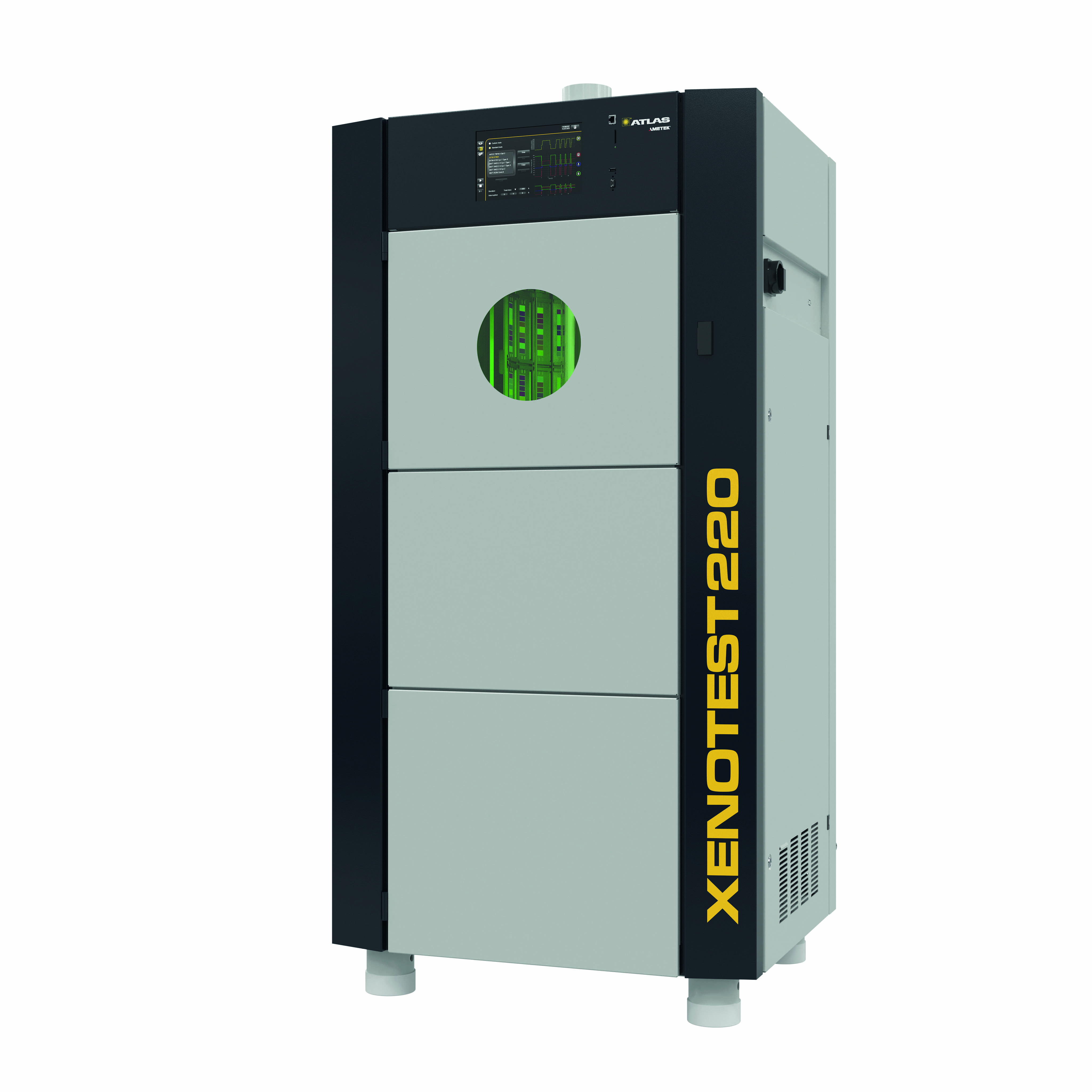

Xenotest 220/220+

Atlas Xenotest 220和Xenotest 220+是专为纺织品测试而设计的大容量风冷氙灯老化仪。它们在样品架上配备了优质的辐照度和温度传感器,以及长效滤镜技术

  • 概述 +



    Xenotest 220和Xenotest 220+是用于纺织品测试的大容量风冷氙灯老化仪。配有高级样品架辐照、温度传感器和长效滤镜技术。220系列拥有测试38个样本的能力,在相同占地面积内所提供的容量几乎是150 S+的两倍。巨大的试验箱和高效水电使用使它成为当今最经济的风冷氙灯老化仪。它符合ISO 105 B02、AATCC TM16(选项3)和玛莎百货(Marks &Spencer )C9 C9A标准。

  • Features +


    • 1x 2200 W air-cooled Xenon Lamp
    • 2310 cm2 exposure area
    • Microprocessor control with keypad and black/white display (220)
    • Touch screen with colour display to monitor and display test parameters (220+)
    • Direct Setting and Control of Irradiance (300-400 nm)
    • Direct Setting and Control of Black Standard Temperature
    • Direct Setting and Control of Chamber Temperature
    • Direct Setting and Control of Relative Humidity
    • Display of Diagnostic Message
    • Storage for 10 user-defined tests
    • Multilingual User Interface (220+)
    • Non-aging filter systems for ISO 105-B02 and AATCC TM16
    • On-rack XENOSENSIV® for measuring and controlling irradiance (in W/m²) and Black Standard Temperature on sample level
    • Selectable temperature control either by Chamber Temperature (up to 65 °C) or by Dual Control: Chamber Temperature and Black Standard Temperature (up to 100 °C) simultaneously
    • Fan-controlled temperature difference between Chamber and Black Standard Temperature
    • Ultrasonic humidification system with integrated 60l water reservoir for humidity control (automatic refill)
    • Sample rack holding 19 sample holders with capacity for 38 standard textile samples
    • Pre-programmed standards ISO 105 B02 and AATCC TM16-2004 (Option 3)
    • Switch-off by radiant exposure, light exposure or total operating time
    • UV-protected test chamber window
    • Advanced Auto Start functions
    • Internal memory chip for storing instrument data
    • Data output via Memory Card or RS 232
    • Ethernet interface plus XenoTouch Add-ons 1, 2, and 3 (“Remote Control“, “E-Mail Service“, “Online Monitoring“)

  • Options +


    • XenoCal BST Black Standard Thermometer
    • XenoCal BB 300-400 Irradiance Sensor
    • XenoCal NB 340 Irradiance Sensor
    • XENOSENSIV RC-420 BPT
    • XENOSENSIV RC-340 BPT
  • Accessories +


    • ISO 105-B02 Application Kit
    • ISO 105-B04 Application Kit
    • AATCC TM16.3 Application Kit
    • Daylight (B04) Filter System (filter with UV cut-on at 300 nm to simulate outdoor testing)
    • XENOCHROME 320 (filter with UV cut-on at 320 nm to simulate testing behind window glass)
    • Filter System TM16 (filter to meet requirements of AATCC TM16.3)
    • Specialized specimen holder sets with multiple segments
    • XenoTouch Add-ons; Remote Control, E-Mail Service, Online Monitoring
  • 标准 +


    列出的标准和规范可能包含几个备选的测试选项,该仪器在任何列出的标准中至少满足一个选项。标准如有变更,不另行通知。 这可能导致测试技术的改变。经常与负责的标准开发组织检查标准的修订状态。如果不确定仪器是否符合要求,请与当地销售代表联系。

    • AATCC TM16-2004
    • Colorfastness to Light
    • AATCC TM16.3
    • Colorfastness to Light
    • AATCC TM169
    • Weather Resistance of Textiles: Xenon Lamp Exposure
    • ISO 105-B02
    • Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
    • Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
    • ISO 105-B10
    • Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • M&S C9
    • Colorfastness to Light
    • M&S C9A
    • Colorfastness to wet light in the presence of alkaline or other chemical residues
